Next CRM — Customization & Asterisk VoIP
Lead-to-Opportunity Pipeline, ToDo Bridge & Telephony Integration
Enterprise customization and workflow enhancement of Next CRM (Frappe CRM) to eliminate sales pipeline friction and fix broken telephony. Engineered automated Lead-to-Opportunity conveyance workflows, created a direct 'ToDo to Opportunity' deep-linking bridge inside task modals, and architected a custom VoIP telephony integration powered by Asterisk PBX to replace the non-functional native CRM dialer with reliable in-browser calling, live call logs, and contact history syncing.
Interface Evidence & Workflows
Leads Management & Pipeline Directory
Centralized lead directory tracking enterprise organizations (Tata Motors, Rahul Industry), real-time status badges (Lead, Quotation), customer contact info, and administrator assignments.
Lead-to-Opportunity & Asterisk Telephony Lifecycle
Lead Ingestion & Contact Qualification
New prospective buyers and corporate accounts are captured into the Next CRM Leads directory with contact numbers, email addresses, and territory data.

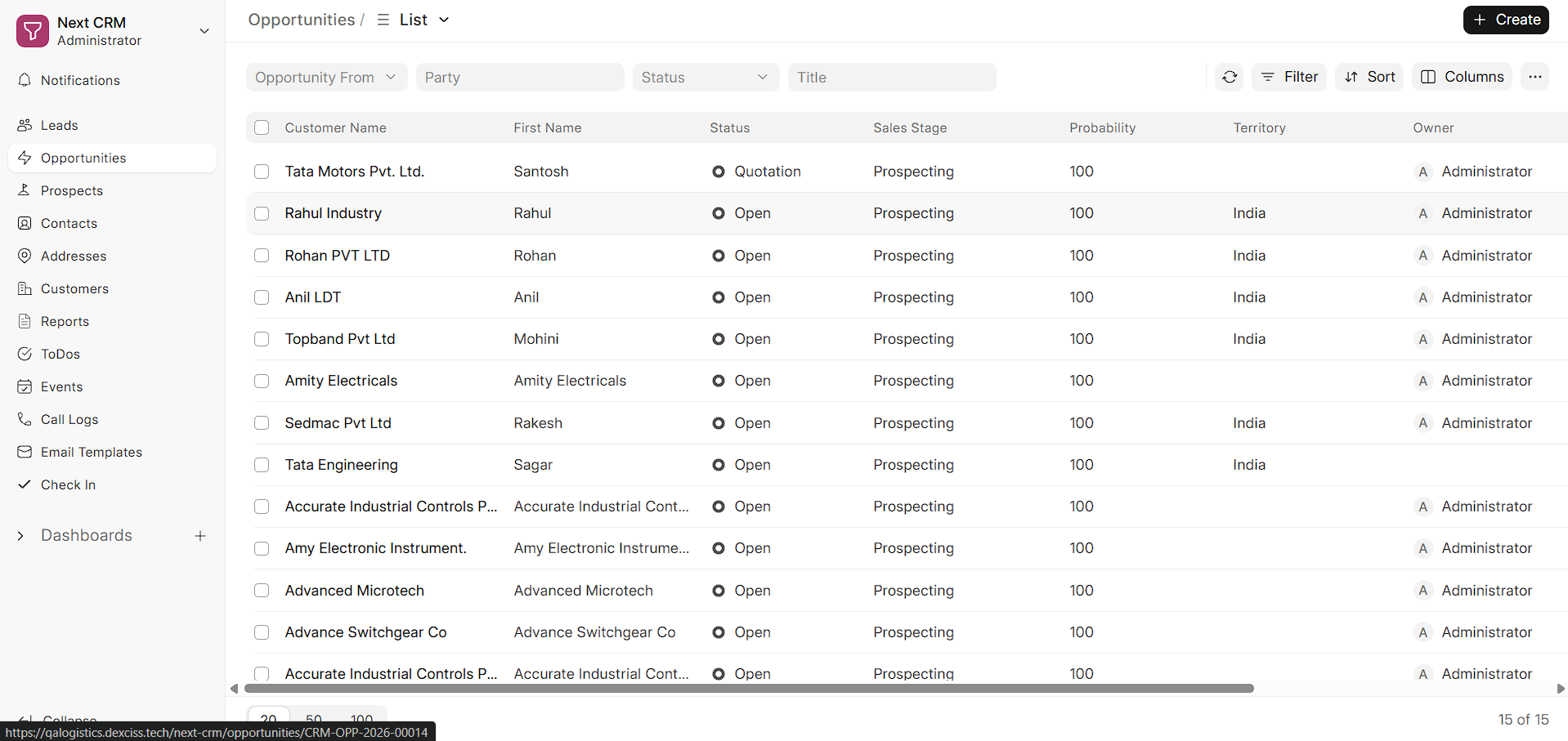

Lead-to-Opportunity Conveyance
Custom logic smoothly conveys qualified leads into active Opportunities, mapping sales stages (Prospecting to Quotation) and probability matrices.
Contextual ToDo Task Allocation
Sales tasks are automatically scheduled and linked to specific opportunities with priority levels and due dates for assigned administrators.

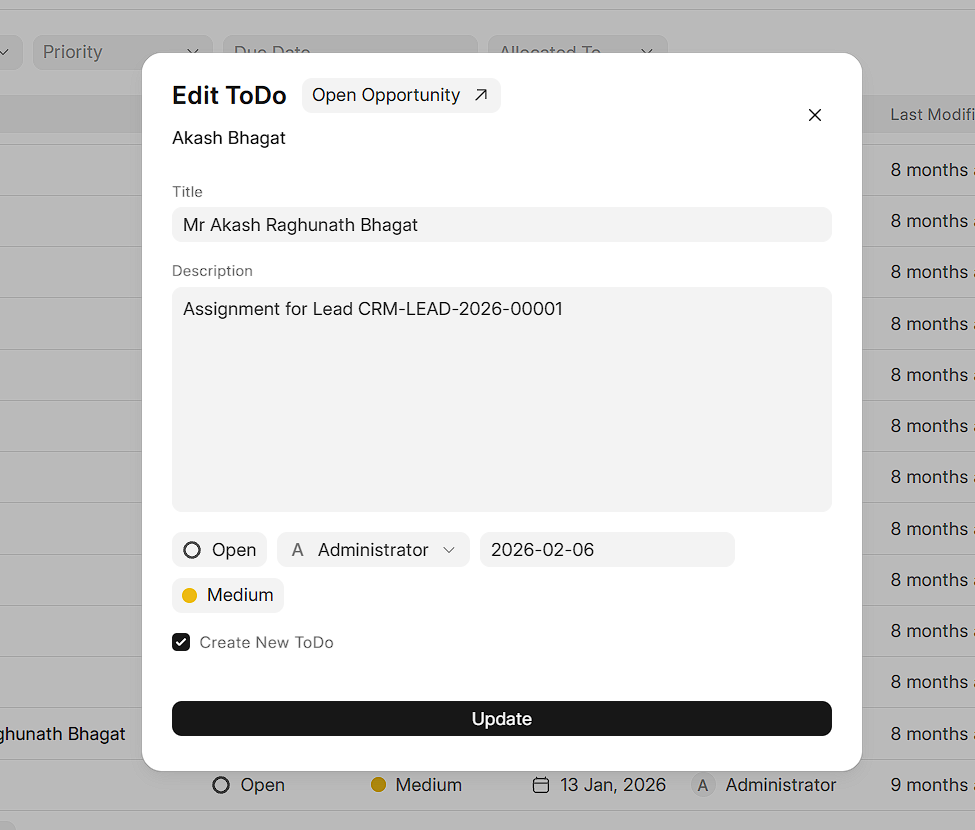

Deep-Linked ToDo-to-Opportunity Bridge
Sales reps reviewing daily ToDos click the embedded 'Open Opportunity ↗' button to instantly open the relevant deal record without workflow interruption.
Asterisk PBX VoIP Calling & Call Logging
Calls are initiated via custom Asterisk PBX telephony, automatically capturing call events, timestamps, and durations into Next CRM Call Logs.
System Layers & Technical Design
Vue.js and Frappe Desk interface with custom 'Edit ToDo' modal extension ('Open Opportunity ↗' action), interactive Lead and Opportunity lists, Call Logs console, and automated Email Template management.
Python controller hooks for automated Lead-to-Opportunity stage transitions, Asterisk PBX VoIP gateway with AMI/ARI socket listeners for browser call routing, and transactional email dispatch engines.
Relational MariaDB/PostgreSQL schemas storing Lead masters, Opportunity pipelines, ToDo assignments, Asterisk Call Logs, and reusable Email Template DocTypes.
The Engineering Challenge & Solution
The standard CRM implementation had disjointed sales handoffs between Leads and Opportunities, disconnected daily salesperson tasks (ToDos) requiring manual navigation to find deal context, and an out-of-the-box VoIP telephony integration that failed to connect calls or sync call logs reliably with customer records.
Engineered tailored CRM customizations: (1) automated Lead-to-Opportunity conveyance with status tracking and probability modeling, (2) built an embedded 'Open Opportunity' quick-action bridge directly into the ToDo modal, and (3) deployed a standalone Asterisk PBX telephony integration with dedicated Call Logs tracking, enabling stable in-browser VoIP calling and automatic call record association directly inside customer files.
Production Impact & Delivered Capabilities
Engineered smooth Lead-to-Opportunity pipeline conveyance with automatic qualification and sales stage tracking (Prospecting, Quotation, Open)
Built contextual 'ToDo to Opportunity' bridge modal with instant deep-linking ('Open Opportunity ↗') to eliminate task-to-deal context switching
Replaced broken out-of-the-box CRM dialer with a custom Asterisk PBX VoIP telephony integration with live Call Logs and history tracking

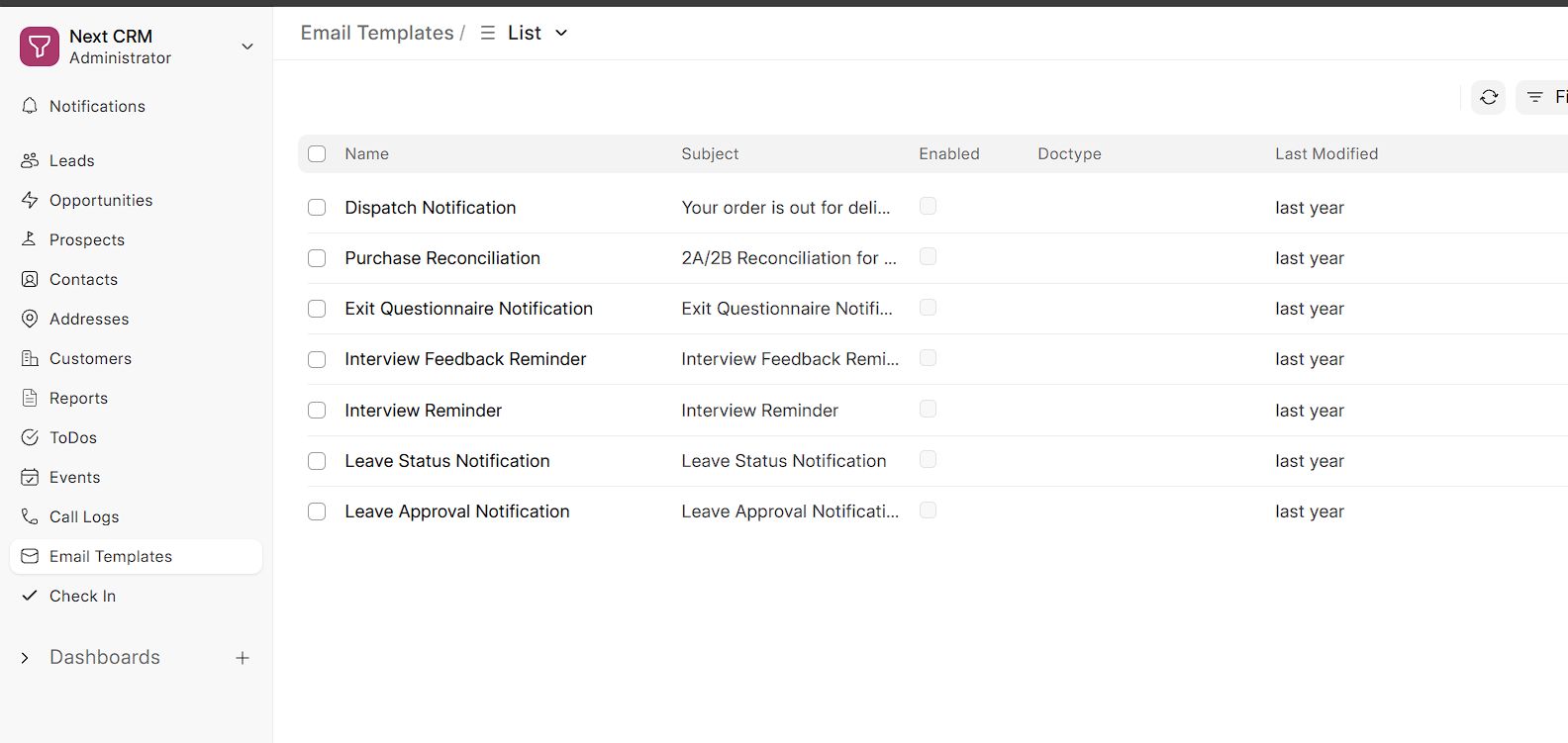

Created centralized Email Templates management interface tied to CRM DocTypes for automated dispatch notifications and customer communications
Streamlined daily sales rep workflows across customer directories, task management, and communication channels
Architecture & Process Flow Models
Lead-to-Opportunity Conveyance & Asterisk PBX Telephony DFD
Data flow diagram illustrating automated lead qualification, opportunity conveyance, contextual ToDo deep-link modal bridge, Asterisk PBX VoIP dialer, and live call logs synchronization.
